ITian SquareOne SQ201

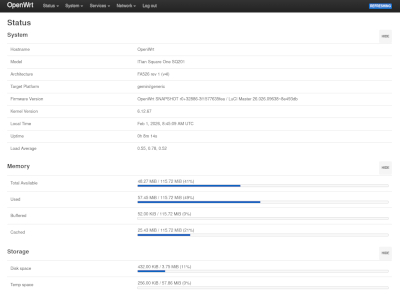

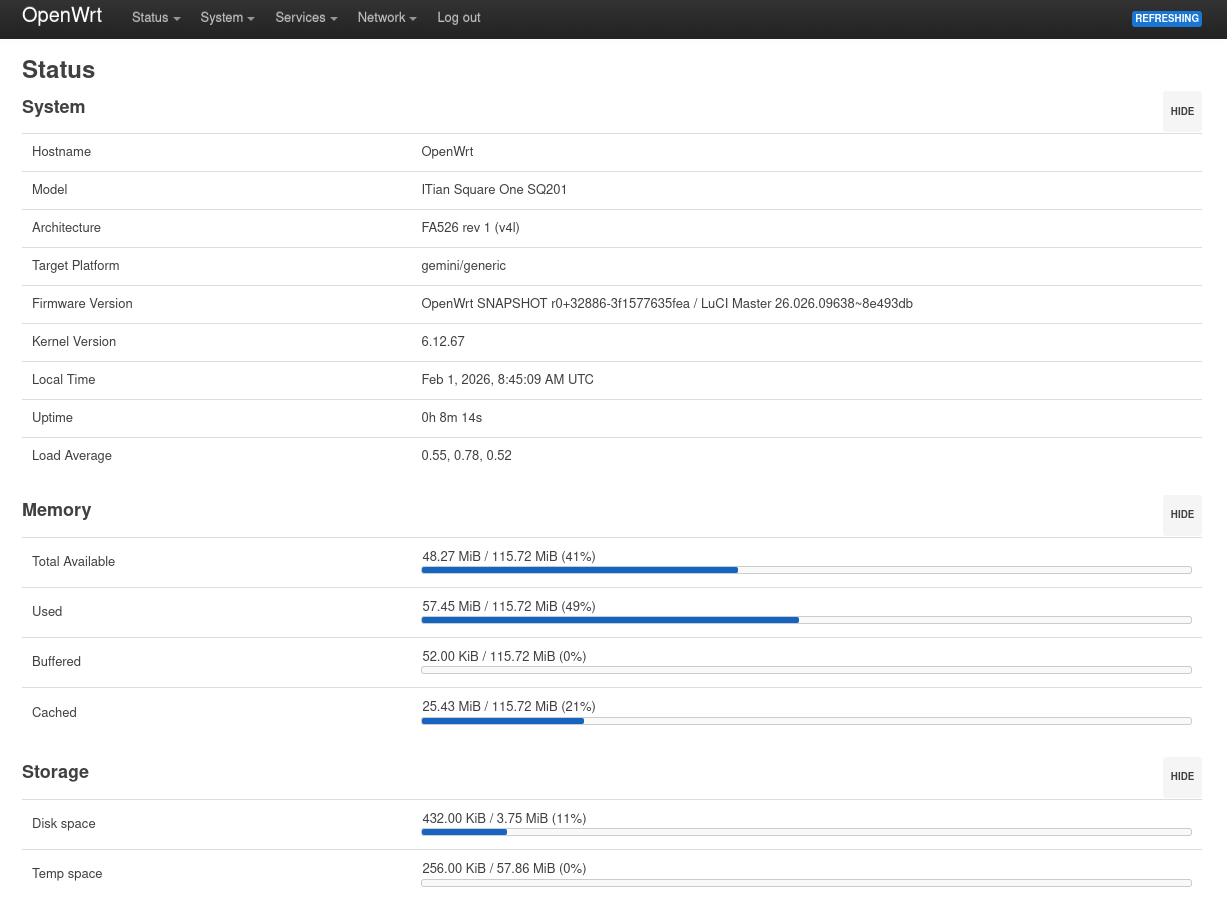

I have moved the basic use and set-up of the device to the corresponding OpenWrt ITian SQ201 page where it is properly maintained by the community. This page is just my own musings and tricks, and a bit of history.
This is a pretty funny gemini-based router and NAS. All references on the Internet (almost) are in polish, but the FCC documentation seems to come from people in Taiwan. So it seems like a polish company partnered with a Taiwanese electronics producer to make a home router and NAS for the polish market, using the Gemini SL3516 chip. ITian has not been heard from for the last ten years or so.
Serial Port
There are serial port connectors on the PCB.
The serial port uses 115200N8 unlike other Gemini platforms that usually use 19200N8.
Pre-built kernels
- A tested zImage based on kernel v4.20-rc1 with the SQ201 device tree attached - this will attempt to boot from flash partition /dev/mtdblock2 which should contain an OpenWRT root filesystem on squashfs+JFFS2 overlay format.
- A tested zImage based on kernel v4.17-rc3 with the SQ201 device tree and initramfs attached.
- A tested zImage based on kernel v4.13-rc3 with the SQ201 device tree and initramfs attached.
- A tested zImage based on kernel v4.11-rc1 with the SQ201 device tree and initramfs attached.
- A tested zImage based on kernel v4.10-rc2 with the SQ201 device tree and initramfs attached.
SQ201-Specifics: Getting SQ201 RT2561s wireless going
- Enable the SQ201 PCI devices:
- 0000:00:00.0 0x159b/0x4321 Faraday root hub?
- 0000:00:09.0 0x1106/0x3038 VIA Technologies, Inc. VT82xx/62xx UHCI USB 1.1 Controller
- 0000:00:09.1 0x1106/0x3038 VIA Technologies, Inc. VT82xx/62xx UHCI USB 1.1 Controller
- 0000:00:09.2 0x1106/0x3104 VIA Technologies, Inc. USB 2.0 EHCI Controller
- 0000:00:0c.0 0x1814/0x0301 RaLink RT2561/RT61 802.11g PCI
- Get rt2561s.bin from the Linux firmware repository, build and package into your rootfs, it needs to land in /lib/firmware/rt2561s.bin
- ifconfig wlan0 192.168.1.64 netmask 255.255.255.0 up
Analyzing the Firmware
Log into the vendor-supplied firmware with admin/admin.
cat /proc/interrupts CPU0 1: 0 eth1 2: 21 eth0 4: 116 ide1 8: 0 sl2312 pci int 15: 35981 SL2312 Timer Tick 18: 2118 sl2312 22: 0 GPIO1 23: 0 GPIO2 25: 0 cir 64: 0 uhci_hcd:usb2 65: 0 uhci_hcd:usb3 66: 0 ehci_hcd:usb1 67: 7350 ra0 Err: 0 cat /proc/iomem 00000000-07ffffff : System RAM 00025000-0033e5d3 : Kernel text 00340000-004759bf : Kernel data 42000000-4200004f : serial_sl2312 58000000-58007fff : 0000:00:0c.0 58008000-580080ff : ehci_hcd 63000000-63000040 : lepus-sata0 63400000-63400040 : lepus-sata 68000000-68000fff : ehci-hcd-FOTG2XX 69000000-69000fff : ehci-hcd-FOTG2XX-1 f4800000-f4800038 : irq_handler cd /sys/bus/platform/devices && ls -al lrwxrwxrwx 1 root root 0 Dec 31 16:09 lepus-sata -> ../../../devices/platform/lepus-sata lrwxrwxrwx 1 root root 0 Dec 31 16:09 lepus-sata0 -> ../../../devices/platform/lepus-sata0 lrwxrwxrwx 1 root root 0 Dec 31 16:09 ehci-hcd-FOTG2XX -> ../../../devices/platform/ehci-hcd-FOTG2XX lrwxrwxrwx 1 root root 0 Dec 31 16:09 ehci-hcd-FOTG2XX-1 -> ../../../devices/platform/ehci-hcd-FOTG2XX-1 cd /sys/bus/usb/devices && ls -al lrwxrwxrwx 1 root root 0 Dec 31 16:11 usb1 -> ../../../devices/pci0000:00/0000:00:09.2/usb1 lrwxrwxrwx 1 root root 0 Dec 31 16:11 1-0:1.0 -> ../../../devices/pci0000:00/0000:00:09.2/usb1/1-0:1.0 lrwxrwxrwx 1 root root 0 Dec 31 16:11 usb2 -> ../../../devices/pci0000:00/0000:00:09.0/usb2 lrwxrwxrwx 1 root root 0 Dec 31 16:11 2-0:1.0 -> ../../../devices/pci0000:00/0000:00:09.0/usb2/2-0:1.0 lrwxrwxrwx 1 root root 0 Dec 31 16:11 usb3 -> ../../../devices/pci0000:00/0000:00:09.1/usb3 lrwxrwxrwx 1 root root 0 Dec 31 16:11 3-0:1.0 -> ../../../devices/pci0000:00/0000:00:09.1/usb3/3-0:1.0
Source code from other vendors suggest things like this for the MDIO GPIO pins to talk to the Vitesse switch and the PHY searching for the keyword VITESSE_G5SWITCH:
- If bit 30 in GMAC_GLOBAL_BASE_ADDR+0x04 is set, and we are on the C3 ASIC, GMAC_GLOBAL_BASE_ADDR+0x0 == 0x3516C3, then bit 4 in GMAC_GLOBAL_BASE_ADDR+0x30 is inverted.
- SPI is then used to read something
- Then bit 4 in GMAC_GLOBAL_BASE_ADDR+0x30 is set to 1
- ethernet 1 is used for the switch
- sl_switch.c contains some logic to talk to switches
- Two SPI ports elegible:
First (all on gpio1 at 0x4e000000 so offset on this controller):- CS: GPIO 31
- MISO: GPIO 30
- MOSI: GPIO 29
- CK: GPIO 28
- CS: GPIO 9
- MISO: GPIO 10
- MOSI: GPIO 7
- CK: GPIO 5
Kernel TODO
Add a proper device tree for the deviceUpdate the SQ201 device tree for connecting the first ethernet interface to the Marvell 88E1111 PHY chip (patch merged for v4.19)Update the Gemini defconfig with the Marvell PHYCreate a new DSA driver for the Vitesse VSC7385/VSC7395 router chip, OpenWRT has a firmware loading hack since agesCreate a device tree binding for the Vitesse VSC73xx switches (patch merged for v4.19)Extend the Vitesse PHY driver to handle the odd VSC73xx switches (patch merged for v4.19)Create a DSA driver for the Vitesse VSC73xx switches (patch merged for v4.19)Update the SQ201 device tree for connecting the second ethernet interface to the VSC7395 chip using a fixed link (patch merged for v4.19)- Update the Gemini defconfig with the VSC73xx driver
Create a pin control flash add-on so we can multiplex NOR flash and GPIO access for the LEDs.
OpenWrt TODO
Fix installation procedure and flash layout.
Testing
Bring up interfaces:
ifconfig eth0 192.168.1.2 netmask 255.255.255.0 up ifconfig eth1 169.254.1.2 netmask 255.255.255.0 up ifconfig lan1 up
Testing jumboframes:
ifconfig lan1 mtu 9000 ifconfig eth1 mtu 9000 ifconfig eth0 mtu 9000 ping -s 8000 <ip>
